Home > CENTRIFUGAL PUMP > FZB fluorine plastic self-priming pump

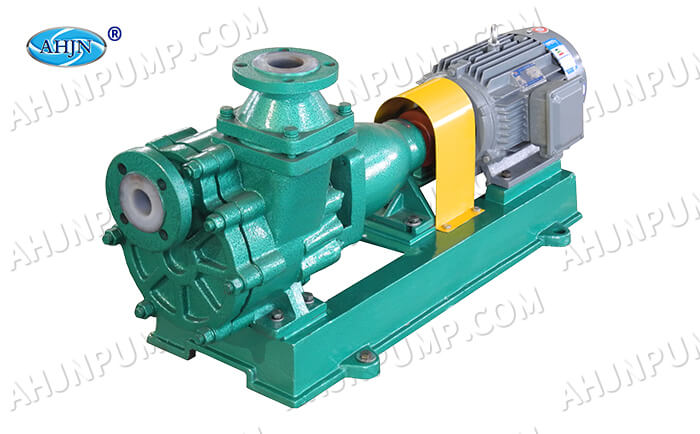

FZB fluorine plastic self-priming pump

FZB fluorine plastic self-priming pump

FZB fluorine plastic self-priming pump

FZB fluorine plastic self-priming pump
TECHNICAL DATA
Material: F46/HT200
DN: 25mm-100mm
PN: 16bar
Q: 1.6m³/h-100m³/h
H: 20m-45m
T: -20°C-120°C
P: 1.5kw-30kw

Send E-mail:Nancy@jnhgbf.com

Send Inquiry Get Latest Price
Join Us On Whatsapp:Click it to Join in

General Overview

General Overview

  • Fzb series fluoroplastic self-priming centrifugal pump is referred to as “fzb fluoroplastic self-priming pump”. The flow passage parts of fzb self-priming pump are made of fluoroplastic, and the shaft seal is made of advanced external bellows mechanical seal, which is convenient and adjustable. It is a new generation of corrosion-resistant self-priming pump.
  • The self-priming height of fzb fluoroplastic self-priming pump is 3-4m (when the medium is clear water), which avoids the inconvenient factors such as backward filling installation, water filling and priming valve of ordinary centrifugal pump. It is widely used in acid pickling process, acid making and alkali making, chemical industry, pesticide, papermaking, electronics and other industries.
  • The fluorine plastic self-priming pump manufactured by Anhui Jiangnan pump valve has the advantages of strong corrosion resistance, fast gas-liquid separation, short self-priming time, high suction head, long working time, high efficiency, quiet and low vibration.

Applicable fields Model parameters

N Model Rev=2900r/min   Medium density=1000kg/m ³
Flow Pump head η Inlet Outlet Npsh Power self-priming self-priming Weight
(m³/h) (m) (%) (mm) (mm) (m) (kw) (m)  (s ) (kg)
1 25FZB-20 1.6 20 20 φ25 φ25 3 1.5 1.5 150 65
2 32FZB-20 3.2 20 30 φ32 φ25 3 2.2 1.5 150 70
3 40FZB-20 6.3 20 42 φ40 φ32 3 2.2 3 150 70
4 40FZB-30 6.3 30 48 φ40 φ50 3 4 3 150 70
5 50FZB-20 12.5 20 42 φ50 φ40 3 2.2/3 3 150 70
6 50FZB-30 12.5 30 48 φ50 φ50 3.5 4 3 180 160
7 50FZB-45 12.5 45 35 φ50 φ32 3.5 7.5 3 200 210
8 65FZB-30 25 30 55 φ65 φ50 4 7.5 3 180 210
9 65FZB-45 25 45 42 φ65 φ40 4 11 3 200 300
10 80FZB-30 50 30 58 φ80 φ65 4.5 11 3 180 284
11 80FZB-45 50 45 53 φ80 φ65 4.5 15 3 200 330
12 100FZB-30 100 30 68 φ100 φ80 6 18.5 3 250 300
13 100FZB-45 100 45 55 φ100 φ80 6 30 3 250 500

Installation dimensions Size chart

N Model Outside and installing size Inlet flange size Exit flange size
L S P f W T H h X c a b n-φd k g i n-φt
1 40FZB-30 1150 590 255 207 390 350 535 330 90 40 150 110 4-φ18 32 140 100 4-φ18
2 50FZB-30 1085 600 292 205 350 330 510 342 90 50 165 125 4-φ18 50 165 125 4-φ18
3 50FZB-45 1225 650 312 200 440 385 615 410 112 50 165 125 4-φ18 32 140 100 4-φ18
4 65FZB-30 1280 650 350 255 440 385 525 342 98 65 185 145 4-φ18 50 165 125 4-φ18
5 65FZB-45 1400 740 355 225 500 435 645 425 114 65 185 145 4-φ18 40 150 110 4-φ18
6 80FZB-30 1360 735 368 215 490 440 550 370 110 80 200 160 8-φ18 65 185 145 4-φ18
7 80FZB-45 1360 735 368 215 490 440 550 370 120 80 200 160 8-φ18 65 185 145 4-φ18
8 100FZB-30 1555 840 448 285 540 490 683 440 130 100 220 180 8-φ18 80 200 160 8-φ18
9 100FZB-45 1680 945 450 285 590 535 723 480 130 100 220 180 8-φ18 80 200 160 8-φ18

Size chart2

N Model Outside and installing size Inlet flange size Exit flange size
L S P f W T H h X c a b n-φd k g i n-φt
1 25FZB-20 860 450 250 114 330 285 405 247 68 25 120 85 4-φ13 25 120 85 4-φ13
280 235
2 32FZB-20 860 450 250 114 325 285 405 247 68 32 140 100 4-φ13 25 120 85 4-φ13
280 230
3 40FZB-20 1020 600 255 207 390 350 532 327 94 40 150 110 4-φ18 32 140 100 4-φ18
4 50FZB-20 1020 600 260 207 390 350 532 337 94 50 165 125 4-φ18 40 150 110 4-φ18
