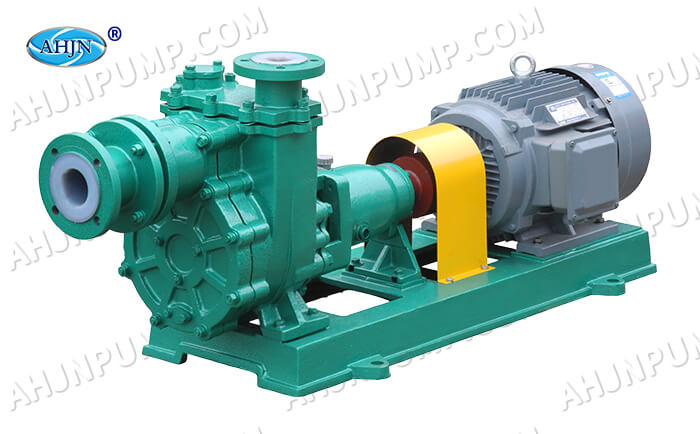

ZBF high-performance fluorine plastic self-priming pump

TECHNICAL DATA
Material:	F46/HT200
DN:	32mm-100mm
PN:	16bar
Q:	6.3m³/h-100m³/h
H:	20m-45m
T:	-20°C-120°C
P:	2.2kw-30kw

Send E-mail:xiaoyun@jnhgbf.com

Send Inquiry Get Latest Price

Join Us On Whatsapp:Click it to Join in

General Overview

ZBF series high-performance fluorine plastic self-priming centrifugal pump, hereinafter referred to as “ZBF fluorine plastic self-priming pump” breaks through the traditional self-priming pump limited by lining fluorine plastic moulding process, the liquid storage chamber, the gas-liquid separation chamber and the volute flow into an organic whole, have greater gas-liquid separation chamber, unobstructed flow channel, import advanced and reliable check valve is designed, the high and low pressure sealing is reliable, exhaust time significantly shortened, import took power, boost the self-priming performance, its self-priming height can reach 5 meters (atmospheric water).
ZBF fluorine plastic self-priming pump flow components adopt fluorine plastic, the product design are priming, tap hole, be exempted from the disadvantageous factors such as reserve liquid injection tube when the valve is installed, the maximum to meet the needs of users of various working conditions, from the ordinary centrifugal pump to flow backward, irrigation water, bottom valve installation factors, such as the inconvenience is big flow rate, strong corrosion, high level difference ideal working condition of self-priming pump.
The fluorine plastic self-priming centrifugal pump manufactured by Anhui Jiangnan pump valve has the advantages of strong corrosion resistance, quick gas-liquid separation, short self-priming time, high suction, long working time, high efficiency, quiet and low vibration, etc. It is the product that obtains national patent. Suitable for sewage treatment, pickling process, acid and alkali production, chemical industry, pesticide, paper making, electronics and other industries.

Applicable fields Model parameters

N	Rev=2900r/min Medium density=1000kg/m ³
	Model	Flow	Pump head	η	Inlet	Outlet	Npsh	Power	priming High	priming time	Weight
	Model	(m³/h)	(m)	(%)	(mm)	(mm)	(m)	(kw)	(m)	(s )	(kg)
1	40ZBF-20	6.3	20	42	φ40	φ32	3	2.2	5	150	70
2	40ZBF-30	6.3	30	48	φ40	φ40	3	4	5	150	140
3	50ZBF-20	12.5	20	42	φ50	φ40	3	2.2/3	5	150	120
4	50ZBF-30	12.5	30	48	φ50	φ40	3.5	4	5	150	160
5	50ZBF-45	12.5	45	35	φ50	φ32	3.5	7.5	5	150	210
6	65ZBF-20	25	20	58	φ65	φ50	4	3	5	180	180
7	65ZBF-30	25	30	55	φ65	φ50	4	7.5	5	180	210
8	65ZBF-45	25	45	42	φ65	φ50	4	11	5	150	300
9	80ZBF-20	50	20	60	φ80	φ65	4.5	5.5	4.5	200	240
10	80ZBF-30	50	30	58	φ80	φ65	4.5	11	4.5	200	284
11	80ZBF-45	50	45	53	φ80	φ65	4.5	15	4.5	180	330
12	100ZBF-20	100	20	65	φ100	φ80	5	11	4.5	250	280
13	100ZBF-30	100	30	62	φ100	φ80	5	15	4.5	220	320
14	100ZBF-45	100	45	55	φ100	φ80	5	30	4.5	200	500

Installation dimensions Size chart

序号	型号	外　型　安　装　尺　寸											进口法兰尺寸				出口法兰尺寸
	Model	Outside and installing size											Inlet flange size				Exit flange size
		L	L1	S	P	f	W	T	H	h	X	D	c	a	b	n-φd	k	g	i	n-φt
1	40ZBF-20	708	305	260	328	234	180	150	367	230	59	14	40	150	110	4-φ18	32	140	100	4-φ18
2	40ZBF-30	1360	880	600	506	298	385	335	527	387	77	25	40	150	110	4-φ18	40	150	110	4-φ18
3	50ZBF-20	1156	840	605	435	338	375	335	476	327	70	19	50	165	125	4-φ18	40	150	110	4-φ18
4	50ZBF-30	1310	880	600	506	298	385	335	527	387	77	25	50	165	125	4-φ18	40	150	110	4-φ18
5	50ZBF-45	1375	930	650	445	340	435	385	596	435	100	25	50	165	125	4-φ18	32	140	100	4-φ18
6	65ZBF-20	1345	900	600	476	406	390	350	541	377	58	20	65	185	145	4-φ18	50	165	125	4-φ18
7	65ZBF-30	1460	960	650	518	423	435	385	548	392	75	25	65	185	145	4-φ18	50	165	125	4-φ18
8	65ZBF-45	1610	1130	740	538	410	500	435	610	435	100	25	65	185	145	4-φ18	50	165	125	4-φ18
9	80ZBF-20	1425	930	650	536	424	435	385	574	394	90	25	80	200	160	8-φ18	65	185	145	4-φ18
10	80ZBF-30	1555	1130	740	552	428	500	435	616	435	90	25	80	200	160	8-φ18	65	185	145	4-φ18
11	80ZBF-45	1630	1130	740	563	433	500	435	631	450	100	25	80	200	160	8-φ18	65	185	145	4-φ18
12	100ZBF-20	1663	1130	740	593	462	500	435	632	440	86	25	100	220	180	8-φ18	80	200	160	8-φ18
13	100ZBF-30	1615	1151	840	571	456	490	435	641	450	89	25	100	220	180	8-φ18	80	200	160	8-φ18
14	100ZBF-45	1865	1350	945	600	456	600	535	695	500	110	25	100	220	180	8-φ18	80	200	160	8-φ18
