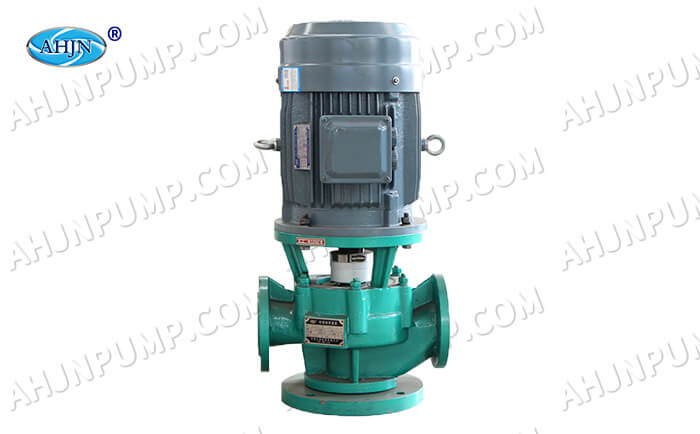

GBF Fluorine plastic lining pipeline pump

GBF Fluorine plastic lining pipeline pump

GBF Fluorine plastic lining pipeline pump

GBF Fluorine plastic lining pipeline pump
TECHNICAL DATA
Material: F46/HT200
DN: 25mm-200mm
PN: 16bar
Q: 2.5m³/h-400m³/h
H: 15m-80m
T: -20°C-200°C
P: 0.75kw-37kw

Send E-mail:xiaoyun@jnhgbf.com

Send Inquiry Get Latest Price
Join Us On Whatsapp:Click it to Join in

General Overview

General Overview

  • GBF fluoroplastic pipeline pump, referred to as “GBF pipeline pump”, is a new type of pipeline centrifugal pump with strong corrosion resistance, which is manufactured by fluoroplastic hot melt molding process.
  • The impeller of GBF fluoroplastic pipeline pump is directly connected with the motor through the bracket, with compact structure. The bellows external mechanical seal is selected, and the shaft seal is stable, reliable, intuitive and easy to adjust. The hydraulic performance is superior, the suction port is excessively uniform, and the overflow parts are made of perfluorinated materials (FEP, PFA).
  • Anhui Jiangnan pump valve GBF fluorine plastic pipeline pump has the advantages of strong corrosion resistance, good temperature resistance, anti-aging, smooth operation, low noise, high efficiency, convenient maintenance and long service life.

Applicable fields Model parameters

N Model Flow Pump head η CAL CAL Npsh Power  Speed
(m³/h) (m) (%) (mm) (mm) (m) (kw) (r/min)
1 GBF25-15 2.5 15 34 25 25 4 0.75 2900
2 GBF32-20 3.6 20 44 32 32 4 1.1 2900
3 GBF40-20 6.3 20 46 40 40 4 1.5 2900
4 GBF40-30 6.3 30 40 40 40 4 2.2 2900
5 GBF40-50 6.3 50 46 40 40 4 5.5 2900
6 GBF50-20 12.5 20 57 50 50 4 2.2 2900
7 GBF50-30 12.5 30 51 50 50 4 3 2900
8 GBF50-50 12.5 50 58 50 50 4 5.5 2900
9 GBF65-20 25 20 65 65 65 4 3 2900
10 GBF65-30 25 30 60 65 65 4 5.5 2900
11 GBF65-50 25 50 54 65 65 4 7.5 2900
12 GBF80-20 40 20 67 80 80 4 4 2900
13 GBF80-30 45 30 66 80 80 4 7.5 2900
14 GBF80-50 50 50 71 80 80 4 15 2900
15 GBF80-80 50 80 59 80 80 4 22 2900
16 GBF100-20 100 20 35 100 100 4 11 2900
17 GBF100-30 100 30 46 100 100 4 15 2900
18 GBF125-18 80 18 68 125 125 4 7.5 1450
19 GBF150-15 100 15 77 150 150 4 7.5 1450
20 GBF150-30 150 30 73 150 150 4 22 1450
21 GBF200-20 400 20 79 200 200 4 37 1450

Installation dimensions Size chart

N Model Outside and installing size Inlet flange size Exit flange size
L L1 H h S D d K n-A K n-B
1 40GBF-30 354 177 590 126 28 280 240 110 4-M16 110 4-Φ17.5
2 50GBF-30 360 180 660 146 28 280 240 125 4-M16 125 4-M16
3 65GBF-30 360 180 720 149 28 280 240 145 4-Φ17.5 145 4-Φ17.5
4 80GBF-30 400 200 730 156 28 300 260 160 8-M16 160 8-M16
5 100ZBF-30 440 220 900 173 28 320 280 180 8-M16 180 8-M16
