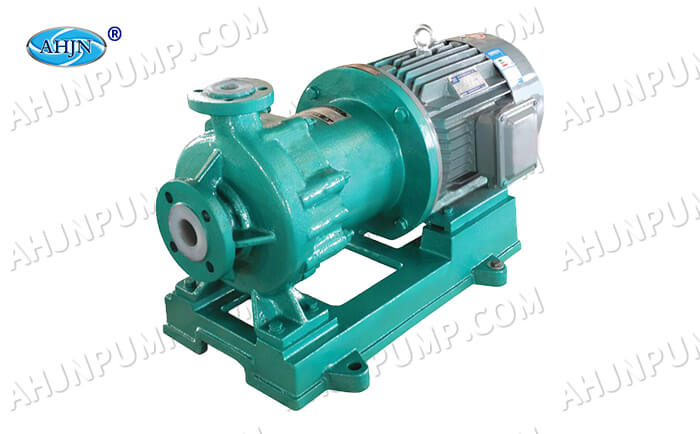

IMD fluorine plastic magnetic pump

IMD fluorine plastic magnetic pump

IMD fluorine plastic magnetic pump

IMD fluorine plastic magnetic pump
TECHNICAL DATA
Material: F46/HT200
DN: 25mm-125mm
PN: 16bar
Q: 6m³/h-150m³/h
H: 25m-50m
T: -20°C-200°C
P: 3kw-30kw

Send E-mail:xiaoyun@jnhgbf.com

Join Us On Whatsapp:Click it to Join in

General Overview

General Overview

  • IMD fluoro-Plastic magnetic pump is referred to as “IMD Fluoro-Lined magnetic pump” – the main components are steel lined F46, high strength pump body, using high-performance magnetic material “Neodymium iron boron” as the internal and external magnet, the isolation sleeve is made of imported non-metallic material, greatly reducing the magnetic vortex loss, can transport high concentration, density more than 1.9t/m3 strong corrosive medium.
  • IMD fluoroplastic magnetic pump is driven by magnetic force indirectly and without contact. The inner and outer magnets are completely isolated with isolation sleeve, so that the pump cavity is in a completely closed state with strong corrosion resistance and no leakage. The pump shell has a sole, and the pump and motor are fixed on the common base, with good stability and lower operating noise and vibration. Thus, it completely prevents the dripping phenomenon and does not pollute the use site. It is especially suitable for conveying strong acid, strong alkalinity, strong oxidation, inflammable, explosive, toxic and volatile medium.
  • Structural design for the pull-back, IMD fluoroplastic magnetic pump shape and Installation dimensions are designed and manufactured according to ISO international standards, all specifications are direct motor connected, supported by the middle bracket, compact structure, easy to disassemble. When repairing or replacing parts, the core parts can be drawn directly from the back without removing the pipeline and the base, which saves the man-hour maintenance and cost and greatly facilitates the customer.

Applicable fields Model parameters

M Model Rev=1450r/min   Medium density=1000kg/m ³
Flow Pump head η Inlet Outlet Npsh Power Weight
(m³/h) (m) (%) (mm) (mm) (m) (kw) (kg)
1 IMD40-25-140 6 25 35 φ40 φ25 3 3 75
2 IMD40-25-150 6 28 33 φ40 φ25 3 3 75
3 IMD40-25-160 6 33 32 φ40 φ25 3 3 75
4 IMD40-25-180 6 40 30 φ40 φ25 3 4 85
5 IMD40-25-200 6 50 28 φ40 φ25 3 5.5 105
6 IMD50-32-140 12 25 38 φ50 φ32 3.5 3 75
7 IMD50-32-150 12 28 39 φ50 φ32 3.5 4 80
8 IMD50-32-160 12 33 40 φ50 φ32 3.5 4 80
9 IMD50-32-180 12 40 36 φ50 φ32 3.5 5.5 110
10 IMD50-32-200 12 50 34 φ50 φ32 3.5 7.5 115
11 IMD65-50-145 25 25 50 φ65 φ50 4 4 85
12 IMD65-50-160 25 32 53 φ65 φ50 4 5.5 90
13 IMD65-40-180 25 40 48 φ65 φ40 4 7.5 120
14 IMD65-40-200 25 50 45 φ65 φ40 4 11 250
15 IMD80-65-125 50 20 58 φ80 φ65 4 7.5 95
16 IMD80-65-150 50 25 57 φ80 φ65 4.5 7.5 120
17 IMD80-65-165 50 35 55 φ80 φ65 4.5 11 180
18 IMD80-50-180 50 40 51 φ80 φ65 4.5 11 185
19 IMD80-50-200 50 50 48 φ80 φ65 4.5 15 195
20 IMD100-80-125 100 20 60 φ100 φ80 5 11 180
21 IMD100-80-150 100 25 62 φ100 φ80 5 15 220
22 IMD100-80-170 100 36 60 φ100 φ80 5 18.5 245
23 IMD125-100-180 150 35 63 φ125 φ100 6 30 320
