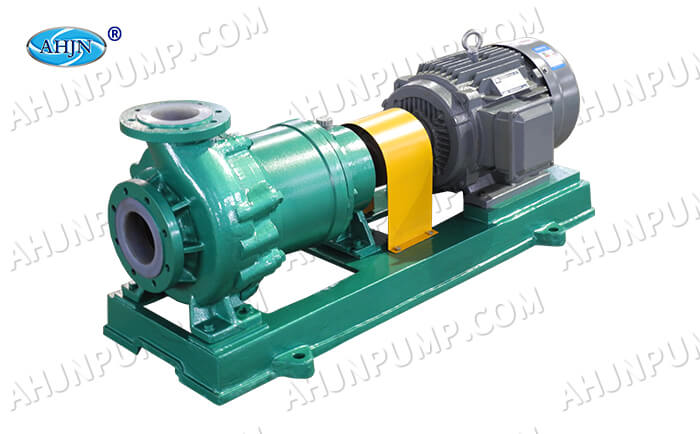

DCQB low speed fluorine plastic magnetic pump
DCQB low speed fluorine plastic magnetic pump
| TECHNICAL DATA |
| Material: |
F46/HT200 |
| DN: |
32mm-100mm |
| PN: |
16bar |
| Q: |
6.3m³/h-50m³/h |
| H: |
8m-20m |
| T: |
-20°C-120°C |
| P: |
0.55kw-4kw |
Send E-mail:Nancy@jnhgbf.com
General Overview
- Dcqb fluorine lined magnetic pump is referred to as “CQB low speed magnetic pump” for short. Its structure is the same as CQB fluorine plastic magnetic pump. In addition to magnetic coupling drive, there is no dynamic sealing point, which prevents the general shaft drive centrifugal pump from running, emitting, dropping and leaking out of the shaft seal, it also has high life, low noise, long operation time, low maintenance cost and higher reliability.
- Dcqb fluorine lined magnetic pump is made of fluorine plastics and high-purity industrial ceramics, which has excellent corrosion resistance and sealing performance. Therefore, this product is widely used in chemical industry, aluminum foil, acid making, coating, medicine, paper making, electroplating, electrolysis, acid pickling, radio, foil forming, scientific research institutions, national defense industry and other industries, especially for high viscosity, strong corrosion, volatile and toxic industries , high pollution, paste medium transportation.
- Dcqb fluorine lined magnetic pump can transport any concentration of acid, alkaline, oil, rare and precious liquid, toxic liquid, volatile chemical media. Especially the transportation of flammable, leaky and explosive liquid chemical medium.
| N |
Model |
Rev =1450r/min Medium density=1000kg/m³ |
| Flow |
Pump head |
η |
Inlet |
Outlet |
Npsh |
Power |
Weight |
| (m³/h) |
(m) |
(%) |
(mm) |
(mm) |
(m) |
(kw) |
(kg) |
| 1 |
DCQB 50-32-160 |
6.3 |
8 |
39 |
φ50 |
φ32 |
3 |
0.55 |
80 |
| 2 |
DCQB 50-32-200 |
6.3 |
12.5 |
32 |
φ50 |
φ32 |
3 |
1.1 |
92 |
| 3 |
DCQB 50-32-250 |
6.3 |
20 |
29 |
φ50 |
φ32 |
5 |
1.5 |
102 |
| 4 |
DCQB 65-50-160 |
12.5 |
8 |
50 |
φ65 |
φ50 |
3.5 |
1.1 |
92 |
| 5 |
DCQB 65-40-200 |
12.5 |
12.5 |
45 |
φ65 |
φ40 |
3.5 |
1.5 |
110 |
| 6 |
DCQB 65-40-250 |
12.5 |
20 |
42 |
φ65 |
φ40 |
4 |
3 |
140 |
| 7 |
DCQB 80-65-160 |
25 |
8 |
61 |
φ80 |
φ65 |
4 |
1.5 |
110 |
| 8 |
DCQB 80-50-200 |
25 |
12.5 |
56 |
φ80 |
φ50 |
4 |
2.2 |
120 |
| 9 |
DCQB 80-50-250 |
25 |
20 |
52 |
φ80 |
φ50 |
4.5 |
4 |
140 |
| 10 |
DCQB 100-80-160 |
50 |
8 |
66 |
φ100 |
φ80 |
5 |
2.2 |
140 |
| 11 |
DCQB 100-65-200 |
50 |
12.5 |
63 |
φ100 |
φ65 |
5 |
4 |
320 |
