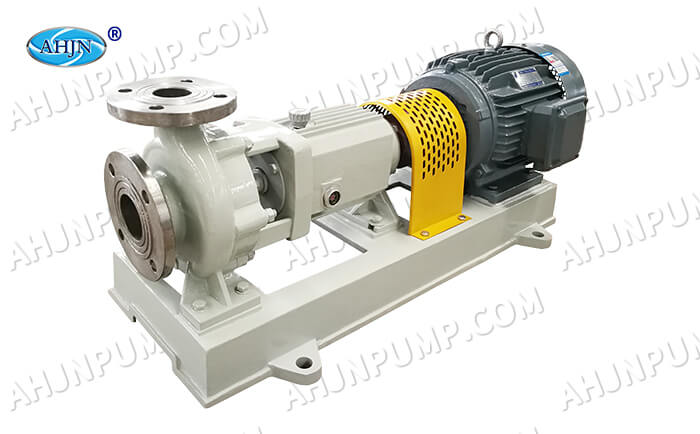

JIH stainless steel centrifugal pump

TECHNICAL DATA
Material:	304/316L/HT200
DN:	20mm-300mm
PN:	16bar
Q:	2m³/h-1000m³/h
H:	5m-80m
T:	-50°C-260°C
P:	0.37kw-250kw

Send E-mail:xiaoyun@jnhgbf.com

Send Inquiry Get Latest Price

Join Us On Whatsapp:Click it to Join in

General Overview

JIH stainless steel corrosion-resistant centrifugal pump is referred to as “JIH stainless steel centrifugal pump”. The flow components are made of 304, 316L and other high-quality stainless steel materials. The hydraulic model of the pump is advanced. Design with internal single end face mechanical seal (JIH-ND), internal double end face mechanical seal (JIH-NS), external mechanical seal (JIH-WF) and other sealing structures, Installation dimensions conform to ISO2858/GB5652 standard, according to customer needs to configure API682 standard corresponding flushing scheme.
JIH stainless steel centrifugal pump is widely used in petroleum, chemical industry, medicine, sanitation, pesticide, papermaking, dyestuff, sewage treatment and other fields.
JIH stainless steel centrifugal pump has high efficiency, energy saving, strong cavitation resistance and wide range of applicable temperature. It has the advantages of stable operation, low noise and vibration, high reliability, long life and so on. It is the ideal conveying equipment for alkali liquor, alcohol, various organic solvents and other media.

Applicable fields Model parameters

N	Model	Rev=2900r/min Medium density=1000kg/m³
		Flow	Pump head	η	Inlet	Outlet	Npsh	Power	Weight
		(m³/h)	(m)	(%)	(mm)	(mm)	(m)	(kW)	(kg)
1	JIH25-20-125	2	20	27	φ25	φ20	2	0.75	55
2	JIH25-20-160	2	32	25	φ25	φ20	2	1.1	60
3	JIH25-20-200	2	50	22	φ25	φ20	2	2.2	85
4	JIH32-20-125	3.6	20	32	φ32	φ20	2	1.1	60
5	JIH 32-20-160	3.6	32	30	φ32	φ20	2	1.5	70
6	JIH32-20-200	3.6	50	27	φ32	φ20	2.5	3	100
7	JIH40-25-125	6.3	20	39	φ40	φ25	2.5	1.5	65
8	JIH40-25-160	6.3	32	36	φ40	φ25	2.5	2.2	75
9	JIH40-25-200	6.3	50	32	φ40	φ25	2.5	5.5	120
10	JIH40-25-250	6.3	80	28	φ40	φ25	2.5	7.5	165
11	JIH50-32-125	12.5	20	50	φ50	φ32	2.5	2.2	70
12	JIH50-32-160	12.5	32	48	φ50	φ32	2.5	4	120
13	JIH50-32-200	12.5	50	45	φ50	φ32	2.5	7.5	155
14	JIH50-32-250	12.5	80	39	φ50	φ32	2.5	11	220
15	JIH65-50-125	25	20	62	φ65	φ50	2.5	3	85
16	JIH65-50-160	25	32	58	φ65	φ50	2.5	5.5	135
17	JIH65-40-200	25	50	52	φ65	φ40	2.5	11	190
18	JIH65-40-250	25	80	49	φ65	φ40	2.5	15	250
19	JIH80-65-125	50	20	66	φ80	φ65	3	5.5	105
20	JIH80-65-160	50	32	64	φ80	φ65	3	11	170
21	JIH80-50-200	50	50	60	φ80	φ50	3	15	210
22	JIH80-50-250	50	80	56	φ80	φ50	3.5	30	360
23	JIH100-80-125	100	20	73	φ100	φ80	3.5	11	175
24	JIH100-80-160	100	32	69	φ100	φ80	3.5	15	215
25	JIH100-65-200	100	50	65	φ100	φ65	3.5	30	350
26	JIH100-65-250	100	80	62	φ100	φ65	4	45	480
27	JIH125-80-160	160	32	70	φ125	φ80	4	30	410
28	JIH125-100-200	200	50	69	φ125	φ100	4.5	55	590

N	Model	Rev=1450r/min Medium density=1000kg/m ³
		Flow	Pump head	η	Inlet	Outlet	Npsh	Power	Weight
		(m³/h)	(m)	(%)	(mm)	(mm)	(m)	(kW)	(kg)
1	JIH25-20-125	1	5	24	φ25	φ20	2	0.37	51
2	JIH25-20-160	1	8	22	φ25	φ20	2	0.37	56
3	JIH25-20-200	1	12.5	20	φ25	φ20	2	0.55	68
4	JIH32-20-125	1.8	5	28	φ32	φ20	2	0.37	55
5	JIH32-20-160	1.8	8	27	φ32	φ20	2	0.55	60
6	JIH32-20-200	1.8	12.5	23	φ32	φ20	2.5	0.55	80
7	JIH40-25-125	3.2	5	35	φ40	φ25	2.5	0.37	58
8	JIH40-25-160	3.2	8	33	φ40	φ25	2.5	0.55	65
9	JIH40-25-200	3.2	12.5	30	φ40	φ25	2.5	1.1	88
10	JIH40-25-250	3.2	20	25	φ40	φ25	2.5	1.1	115
11	JIH50-32-125	6.3	5	45	φ50	φ32	2.5	0.55	60
12	JIH50-32-160	6.3	8	42	φ50	φ32	2.5	0.55	70
13	JIH50-32-200	6.3	12.5	38	φ50	φ32	2.5	1.1	90
14	JIH50-32-250	6.3	20	34	φ50	φ32	2.5	1.5	140
15	JIH65-50-125	12.5	5	57	φ65	φ50	2.5	0.55	64
16	JIH65-50-160	12.5	8	53	φ65	φ50	2.5	1.1	78
17	JIH65-40-200	12.5	12.5	46	φ65	φ40	2.5	1.5	100
18	JIH65-40-250	12.5	20	43	φ65	φ40	2.5	2.2	165
19	JIH80-65-125	25	5	62	φ80	φ65	2.8	1.1	85
20	JIH80-65-160	25	8	59	φ80	φ65	2.8	1.5	97
21	JIH80-50-200	25	12.5	55	φ80	φ50	2.8	2.2	115
22	JIH80-50-250	25	20	53	φ80	φ50	2.8	4	185
23	JIH100-80-125	50	5	65	φ100	φ80	3	1.5	110
24	JIH100-80-160	50	8	61	φ100	φ80	3	2.2	140
25	JIH100-65-200	50	12.5	57	φ100	φ65	3	4	260
26	JIH100-65-250	50	20	54	φ100	φ65	3	7.5	330
27	JIH125-80-160	80	8	68	φ125	φ80	3.2	4	280
28	JIH125-100-200	100	12.5	65	φ125	φ100	3.5	7.5	330
29	JIH125-100-250	100	20	70	φ125	φ100	3.5	11	360
30	JIH125-100-315	100	32	67	φ125	φ100	3.5	18.5	430
31	JIH125-100-400	100	50	64	Ф125	Ф100	3.8	37	520
32	JIH150-125-250	200	20	74	φ150	φ125	3.8	22	460
33	JIH150-125-315	200	32	69	φ150	φ125	4	45	580
34	JIH150-125-400	200	50	66	φ150	φ125	4	75	760
35	JIH200-150-250	400	20	76	φ200	φ150	4.2	55	590
36	JIH200-150-315	400	32	73	φ200	φ150	4.5	75	820
37	JIH200-150-400	400	50	70	φ200	φ150	4.5	110	1080
38	JIH250-200-250	650	20	78	Ф200	Ф150	4.5	75	940
39	JIH250-200-315	650	32	75	Ф200	Ф150	4.8	110	1160
40	JIH250-200-400	650	50	72	Ф200	Ф150	5	132	1380
41	JIH300-250-250	1000	20	79	Ф300	Ф250	5.5	110	1320
42	JIH300-250-315	1000	32	77	Ф300	Ф250	6	160	1750
43	JIH300-250-400	1000	50	74	Ф300	Ф250	6	250	2380
