| TECHNICAL DATA | |
| Material: | 304/316L/HT200 |
| DN: | 25mm-200mm |
| PN: | 16bar |
| Q: | 3.2m³/h-200m³/h |
| H: | 15m-80m |
| T: | -20°C-120°C |
| P: | 0.75kw-90kw |
Send E-mail:xiaoyun@jnhgbf.com

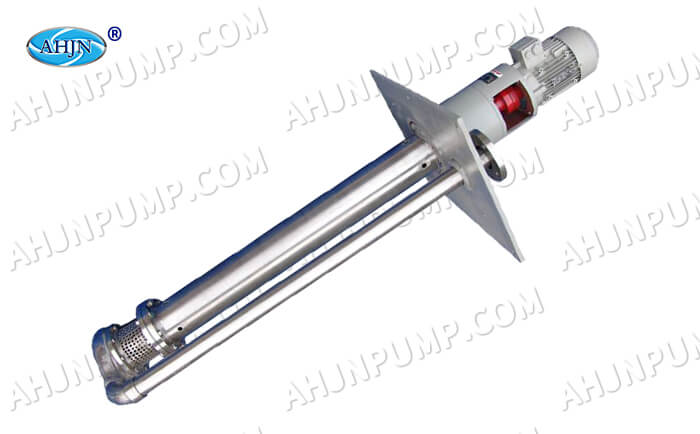

JY stainless steel submerged pumpJY stainless steel submerged pump
| N | Model | Rev=2900r/min | Rev=1450r/min | ||||
| Flow | Pump head | Power | Flow | Pump head | Power | ||
| (m³/h) | (m) | (kw) | (m³/h) | (m) | (kw) | ||
| 1 | 25JY（HY）-25 | 3.6 | 25 | 2.2 | 1.6 | 6 | 0.75 |
| 2 | 25JY（HY）-41 | 3.6 | 41 | 4 | 1.6 | 10 | 1.5 |
| 3 | 25JY（HY）-50 | 3.2 | 50 | 5.5 | 1.6 | 12.5 | 1.5 |
| 4 | 25JY（HY）-80 | 3.2 | 80 | 11 | 1.6 | 20 | 2.2 |
| 5 | 40JY（HY）-16 | 7.2 | 16 | 2.2 | 3.6 | 4 | 1.1 |
| 6 | 40JY（HY）-26 | 7.2 | 26 | 3 | 3.6 | 5 | 1.1 |
| 7 | 40JY（HY）-40 | 7.2 | 40 | 4 | 3.6 | 10 | 1.5 |
| 8 | 40JY（HY）-50 | 6.3 | 50 | 5.5 | 3.2 | 12.5 | 1.5 |
| 9 | 40JY（HY）-80 | 6.3 | 80 | 11 | 3.2 | 20 | 2.2 |
| 10 | 50JY（HY）-25 | 14.4 | 25 | 4 | 7.2 | 6 | 1.5 |
| 11 | 50JY（HY）-40 | 14.4 | 40 | 7.5 | 7.2 | 10 | 2.2 |
| 12 | 50JY（HY）-50 | 12.5 | 50 | 7.5 | 6.3 | 12.5 | 2.2 |
| 13 | 50JY（HY）-80 | 12.5 | 80 | 15 | 6.3 | 20 | 3 |
| 14 | 65JY（HY）-25 | 28.8 | 25 | 5.5 | 14 | 6 | 1.5 |
| 15 | 65JY（HY）-40 | 28.8 | 40 | 11 | 14 | 10 | 3 |
| 16 | 65JY（HY）-50 | 25 | 50 | 11 | 12.5 | 12.5 | 3 |
| 17 | 65JY（HY）-80 | 25 | 80 | 18.5 | 12.5 | 20 | 3 |
| 18 | 80JY（HY）-15 | 54 | 15 | 5.5 | 27 | 4 | 0.75 |
| 19 | 80JY（HY）-24 | 54 | 24 | 11 | 27 | 6 | 1.1 |
| 20 | 80JY（HY）-38 | 54 | 38 | 15 | 27 | 9 | 1.5 |
| 21 | 80JY（HY）-50 | 50 | 50 | 22 | 25 | 12.5 | 2.2 |
| 22 | 80JY（HY）-80 | 50 | 80 | 30 | 25 | 20 | 4 |
| 23 | 100JY（HY）-23 | 100 | 23 | 11 | 50 | 5 | 2.2 |
| 24 | 100JY（HY）-37 | 100 | 37 | 15 | 50 | 9 | 3 |
| 25 | 100JY（HY）-50 | 100 | 50 | 30 | 50 | 12.5 | 4 |
| 26 | 100JY（HY）-80 | 100 | 80 | 45 | 50 | 20 | 7.5 |
| 27 | 125JY（HY）-12 | 100 | 50 | 45 | 100 | 12 | 7.5 |
| 28 | 125JY（HY）-20 | 200 | 80 | 75 | 100 | 20 | 15 |
| 29 | 125JY（HY）-32 | 100 | 32 | 18.5 | |||
| 30 | 125JY（HY）-50 | 100 | 50 | 30 | |||
| 31 | 150JY（HY）-20 | 200 | 20 | 30 | |||
| 32 | 150JY（HY）-32 | 200 | 32 | 45 | |||
| 33 | 150JY（HY）-50 | 200 | 50 | 55 | |||
| 34 | 200JY（HY）-20 | 400 | 20 | 45 | |||
| 35 | 200JY（HY）-32 | 400 | 32 | 75 | |||
| 36 | 200JY（HY）-50 | 400 | 50 | 90 | |||
