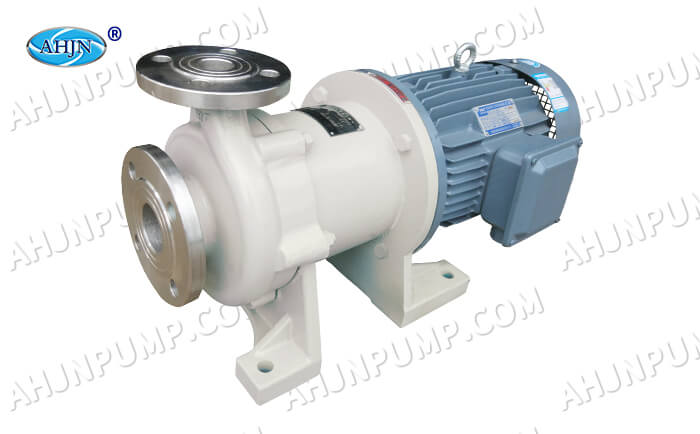

JMP stainless steel magnetic pump

JMP stainless steel magnetic pump

JMP stainless steel magnetic pump

JMP stainless steel magnetic pump
TECHNICAL DATA
Material: 304/316L/HT200
DN: 20mm-125mm
PN: 16bar
Q: 2m³/h-200m³/h
H: 20m-80m
T: -50°C-260°C
P: 0.75kw-55kw

Send E-mail:xiaoyun@jnhgbf.com

Join Us On Whatsapp:Click it to Join in

General Overview

General Overview

  • As JMP JMP stainless steel magnetic drive pump, stainless steel pump “, provided using CFX, combining CFD analysis to calculate the hydraulic model of high performance, over-current components using high-quality stainless steel materials such as 304, 316 l, internal and external magnetic rotor with high magnetic energy product and high coercive force of rare earth permanent magnet manufacturing, has high efficiency and energy saving, medium widely applicable, the advantages of high temperature resistant, strong magnetic, no demagnetization, application of magnetic coupling dynamic sealing contact transmission, a new type of high quality magnetic transmission centrifugal pump.
  • JMP stainless steel magnetic pump is fully sealed, no leakage, clean, environmental friendly, quiet and low vibration in operation. It is the preferred pump for conveying inflammable, explosive, corrosive and precious liquid. Because of energy saving, environmental protection, reliability and safety, and replace import to save a lot of costs for users. Widely used in chemical, alkali, petroleum, medicine, health, pesticide, paper, dye, sewage treatment and other fields.
  • JMP stainless steel magnetic pump has high efficiency, energy saving, strong cavitation resistance and wide range of applicable temperature. It has the advantages of stable operation, low noise and vibration, high reliability, long life and so on. It is the ideal conveying equipment for alkali liquor, alcohol, various organic solvents and other media.

适用范围 Model parameters

序号 Model Rev=2900r/min   Medium density=1000kg/m³
Flow Pump head η Inlet Outlet Npsh Power Weight
(m³/h) (m) (%) (mm) (mm) (m) (kW) (kg)
1 JMP25-20-125 2 20 24 φ25 φ20 2 0.75 55
2 JMP25-20-160 2 32 22 φ25 φ20 2 1.1 60
3 JMP25-20-200 2 50 20 φ25 φ20 2 2.2 85
4 JMP32-20-125 3.6 20 19 φ32 φ20 2 1.1 60
5 JMP32-20-160 3.6 32 27 φ32 φ20 2 1.5 70
6 JMP32-20-200 3.6 50 24 φ32 φ20 2.5 3 100
7 JMP40-25-125 6.3 20 36 φ40 φ25 2.5 1.5 65
8 JMP40-25-160 6.3 32 33 φ40 φ25 2.5 2.2 75
9 JMP40-25-200 6.3 50 29 φ40 φ25 2.5 5.5 120
10 JMP40-25-250 6.3 80 25 φ40 φ25 2.5 7.5 165
11 JMP50-32-125 12.5 20 47 φ50 φ32 2.5 2.2 70
12 JMP50-32-160 12.5 32 43 φ50 φ32 2.5 4 120
13 JMP50-32-200 12.5 50 40 φ50 φ32 2.5 7.5 155
14 JMP50-32-250 12.5 80 35 φ50 φ32 2.5 11 220
15 JMP65-50-125 25 20 58 φ65 φ50 2.5 3 85
16 JMP65-50-160 25 32 50 φ65 φ50 2.5 5.5 135
17 JMP65-40-200 25 50 45 φ65 φ40 2.5 11 190
18 JMP65-40-250 25 80 40 φ65 φ40 2.5 15 250
19 JMP80-65-125 50 20 54 φ80 φ65 3 5.5 105
20 JMP80-65-160 50 32 52 φ80 φ65 3 11 170
21 JMP80-50-200 50 50 46 φ80 φ50 3 15 210
22 JMP80-50-250 50 80 43 φ80 φ50 3.5 30 360
23 JMP100-80-125 100 20 63 φ100 φ80 3.5 11 175
24 JMP100-80-160 100 32 50 φ100 φ80 3.5 15 215
25 JMP100-65-200 100 50 46 φ100 φ65 3.5 30 350
26 JMP100-65-250 100 80 43 φ100 φ65 4 45 480
27 JMP125-80-160 160 32 60 φ125 φ80 4 30 410
28 JMP125-100-200 200 50 55 φ125 φ100 4.5 55 590
