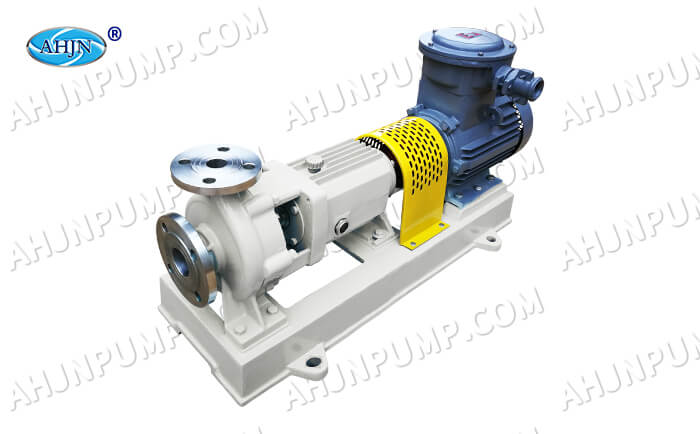

JIH-HX stainless steel centrifugal pump

TECHNICAL DATA
Material:	304/316L/HT200
DN:	20mm-300mm
PN:	16bar
Q:	2m³/h-1000m³/h
H:	5m-80m
T:	-50°C-260°C
P:	0.37kw-250kw

Send E-mail:xiaoyun@jnhgbf.com

Send Inquiry Get Latest Price

Join Us On Whatsapp:Click it to Join in

General Overview

Jih-hx stainless steel corrosion-resistant centrifugal pump is referred to as “IH-HX stainless steel centrifugal pump”. The flow components are made of high-quality stainless steel materials such as 304 and 316L. The hydraulic model of the pump is advanced. Design with internal HX/ double end face with siphon self-circulation sealing structure, Installation dimensions in line with ISO2858/GB5652 standard, according to customer needs to configure API682 standard corresponding flushing scheme.
Jih-hx stainless steel corrosion resistant centrifugal pump is widely used in petroleum, chemical industry, medicine, sanitation, pesticide, papermaking, dyestuff, sewage treatment and other fields.
Jih-hx stainless steel corrosion-resistant centrifugal pump has high efficiency, energy saving, strong cavitation resistance and wide range of applicable temperature. It has the advantages of stable operation, low noise and vibration, high reliability, long life and so on. It is the ideal conveying equipment for alkali liquor, alcohol, various organic solvents and other media.

Applicable fields Model parameters

N	Model	Rev=2900r/min Medium density=1000kg/m³
		Flow	Pump head	η	Inlet	Outlet	Npsh	Power	Weight
		(m³/h)	(m)	(%)	(mm)	(mm)	(m)	(kW)	(kg)
		1	JIH-HX25-20-125	2	20	27	φ25	φ20	2	0.75	55
2	JIH-HX25-20-160	2	32	25	φ25	φ20	2	1.1	60
3	JIH-HX25-20-200	2	50	22	φ25	φ20	2	2.2	85
4	JIH-HX32-20-125	3.6	20	32	φ32	φ20	2	1.1	60
5	JIH-HX 32-20-160	3.6	32	30	φ32	φ20	2	1.5	70
6	JIH-HX32-20-200	3.6	50	27	φ32	φ20	2.5	3	100
7	JIH-HX40-25-125	6.3	20	39	φ40	φ25	2.5	1.5	65
8	JIH-HX40-25-160	6.3	32	36	φ40	φ25	2.5	2.2	75
9	JIH-HX40-25-200	6.3	50	32	φ40	φ25	2.5	5.5	120
10	JIH-HX40-25-250	6.3	80	28	φ40	φ25	2.5	7.5	165
11	JIH-HX50-32-125	12.5	20	50	φ50	φ32	2.5	2.2	70
12	JIH-HX50-32-160	12.5	32	48	φ50	φ32	2.5	4	120
13	JIH-HX50-32-200	12.5	50	45	φ50	φ32	2.5	7.5	155
14	JIH-HX50-32-250	12.5	80	39	φ50	φ32	2.5	11	220
15	JIH-HX65-50-125	25	20	62	φ65	φ50	2.5	3	85
16	JIH-HX65-50-160	25	32	58	φ65	φ50	2.5	5.5	135
17	JIH-HX65-40-200	25	50	52	φ65	φ40	2.5	11	190
18	JIH-HX65-40-250	25	80	49	φ65	φ40	2.5	15	250
19	JIH-HX80-65-125	50	20	66	φ80	φ65	3	5.5	105
20	JIH-HX80-65-160	50	32	64	φ80	φ65	3	11	170
21	JIH-HX80-50-200	50	50	60	φ80	φ50	3	15	210
22	JIH-HX80-50-250	50	80	56	φ80	φ50	3.5	30	360
23	JIH-HX100-80-125	100	20	73	φ100	φ80	3.5	11	175
24	JIH-HX100-80-160	100	32	69	φ100	φ80	3.5	15	215
25	JIH-HX100-65-200	100	50	65	φ100	φ65	3.5	30	350
26	JIH-HX100-65-250	100	80	62	φ100	φ65	4	45	480
27	JIH-HX125-80-160	160	32	70	φ125	φ80	4	30	410
28	JIH-HX125-100-200	200	50	69	φ125	φ100	4.5	55	590

N	Model	Rev=1450r/min Medium density=1000kg/m ³
		Flow	Pump head	η	Inlet	Outlet	Npsh	Power	Weight
		(m³/h)	(m)	(%)	(mm)	(mm)	(m)	(kW)	(kg)
1	JIH-HX25-20-125	1	5	24	φ25	φ20	2	0.37	51
2	JIH-HX25-20-160	1	8	22	φ25	φ20	2	0.37	56
3	JIH-HX25-20-200	1	12.5	20	φ25	φ20	2	0.55	68
4	JIH-HX32-20-125	1.8	5	28	φ32	φ20	2	0.37	55
5	JIH-HX32-20-160	1.8	8	27	φ32	φ20	2	0.55	60
6	JIH-HX32-20-200	1.8	12.5	23	φ32	φ20	2.5	0.55	80
7	JIH-HX40-25-125	3.2	5	35	φ40	φ25	2.5	0.37	58
8	JIH-HX40-25-160	3.2	8	33	φ40	φ25	2.5	0.55	65
9	JIH-HX40-25-200	3.2	12.5	30	φ40	φ25	2.5	1.1	88
10	JIH-HX40-25-250	3.2	20	25	φ40	φ25	2.5	1.1	115
11	JIH-HX50-32-125	6.3	5	45	φ50	φ32	2.5	0.55	60
12	JIH-HX50-32-160	6.3	8	42	φ50	φ32	2.5	0.55	70
13	JIH-HX50-32-200	6.3	12.5	38	φ50	φ32	2.5	1.1	90
14	JIH-HX50-32-250	6.3	20	34	φ50	φ32	2.5	1.5	140
15	JIH-HX65-50-125	12.5	5	57	φ65	φ50	2.5	0.55	64
16	JIH-HX65-50-160	12.5	8	53	φ65	φ50	2.5	1.1	78
17	JIH-HX65-40-200	12.5	12.5	46	φ65	φ40	2.5	1.5	100
18	JIH-HX65-40-250	12.5	20	43	φ65	φ40	2.5	2.2	165
19	JIH-HX80-65-125	25	5	62	φ80	φ65	2.8	1.1	85
20	JIH-HX80-65-160	25	8	59	φ80	φ65	2.8	1.5	97
21	JIH-HX80-50-200	25	12.5	55	φ80	φ50	2.8	2.2	115
22	JIH-HX80-50-250	25	20	53	φ80	φ50	2.8	4	185
23	JIH-HX100-80-125	50	5	65	φ100	φ80	3	1.5	110
24	JIH-HX100-80-160	50	8	61	φ100	φ80	3	2.2	140
25	JIH-HX100-65-200	50	12.5	57	φ100	φ65	3	4	260
26	JIH-HX100-65-250	50	20	54	φ100	φ65	3	7.5	330
27	JIH-HX125-80-160	80	8	68	φ125	φ80	3.2	4	280
28	JIH-HX125-100-200	100	12.5	65	φ125	φ100	3.5	7.5	330
29	JIH-HX125-100-250	100	20	70	φ125	φ100	3.5	11	360
30	JIH-HX125-100-315	100	32	67	φ125	φ100	3.5	18.5	430
31	JIH-HX125-100-400	100	50	64	Ф125	Ф100	3.8	37	520
32	JIH-HX150-125-250	200	20	74	φ150	φ125	3.8	22	460
33	JIH-HX150-125-315	200	32	69	φ150	φ125	4	45	580
34	JIH-HX150-125-400	200	50	66	φ150	φ125	4	75	760
35	JIH-HX200-150-250	400	20	76	φ200	φ150	4.2	55	590
36	JIH-HX200-150-315	400	32	73	φ200	φ150	4.5	75	820
37	JIH-HX200-150-400	400	50	70	φ200	φ150	4.5	110	1080
38	JIH-HX250-200-250	650	20	78	Ф200	Ф150	4.5	75	940
39	JIH-HX250-200-315	650	32	75	Ф200	Ф150	4.8	110	1160
40	JIH-HX250-200-400	650	50	72	Ф200	Ф150	5	132	1380
41	JIH-HX300-250-250	1000	20	79	Ф300	Ф250	5.5	110	1320
42	JIH-HX300-250-315	1000	32	77	Ф300	Ф250	6	160	1750
43	JIH-HX300-250-400	1000	50	74	Ф300	Ф250	6	250	2380

Installation dimensions Size chart

序号	型号	外　型　安　装　尺　寸										进口法兰尺寸				出口法兰尺寸
	Model	Outside and installing size										Inlet flange size				Exit flange size
	Model	L	L1	S	P	f	W	T	H	h	D	c	a	b	n-φd	k	g	i	n-φt
1	JIH-HX25-20-125	755	678	475	119	80	310	270	320	180	19	25	115	85	4-φ14	20	105	75	4-φ14
2	JIH-HX25-20-160	829	770	550	119	80	310	270	340	190	19	25	115	85	4-φ14	20	105	75	4-φ14
3	JIH-HX25-20-200	893	850	580	151	80	390	320	390	210	19	25	115	85	4-φ14	20	105	75	4-φ14
4	JIH-HX32-20-125	755	678	475	119	80	310	270	320	180	19	32	140	100	4-φ18	20	105	75	4-φ14
5	JIH-HX32-20-160	854	770	650	119	80	310	270	340	190	19	32	140	100	4-φ18	20	105	75	4-φ14
6	JIH-HX32-20-200	938	850	580	151	80	390	320	390	210	19	32	140	100	4-φ18	20	105	75	4-φ14
7	JIH-HX40-25-125	857	810	540	150	80	360	320	320	180	19	40	150	110	4-φ18	25	115	85	4-φ14
8	JIH-HX40-25-160	877	810	540	150	80	360	320	360	200	19	40	150	110	4-φ18	25	115	85	4-φ14
9	JIH-HX40-25-200	1033	925	650	165	80	435	385	440	260	25	40	150	110	4-φ18	25	115	85	4-φ14
10	JIH-HX50-32-125	881	810	540	150	80	360	320	320	180	19	50	165	125	4-φ18	32	140	100	4-φ18
11	JIH-HX50-32-160	980	890	600	160	80	385	335	392	232	25	50	165	125	4-φ18	32	140	100	4-φ18
12	JIH-HX50-32-200	1040	925	650	165	80	435	385	440	260	25	50	165	125	4-φ18	32	140	100	4-φ18
13	JIH-HX65-50-125	935	850	580	151	80	390	350	322	182	18	65	185	145	4-φ18	50	165	125	4-φ18
14	JIH-HX65-50-160	1040	925	650	165	80	435	385	392	232	25	65	185	145	4-φ18	50	165	125	4-φ18
15	JIH-HX65-40-200	1204	1128	740	193	100	500	435	440	260	25	65	185	145	4-φ18	40	150	110	4-φ18
16	JIH-HX80-65-125	1073	925	650	185	100	435	385	392	232	25	80	200	160	8-φ18	65	185	145	4-φ18
17	JIH-HX80-65-160	1220	1128	740	208	100	500	435	440	260	25	80	200	160	8-φ18	65	185	145	4-φ18
18	JIH-HX80-50-200	1206	1128	740	193	100	500	435	460	260	25	80	200	160	8-φ18	50	165	125	4-φ18
19	JIH-HX100-80-125	1230	1128	740	208	100	500	435	440	260	25	100	220	180	8-φ18	80	200	160	8-φ18
20	JIH-HX100-80-160	1212	1128	740	208	100	500	435	460	260	25	100	220	180	8-φ18	80	200	160	8-φ18
21	JIH-HX100-65-200	1470	1350	945	210	100	595	535	525	300	25	100	220	180	8-φ18	65	185	145	4-φ18
22	JIH-HX125-100-200	1705	1620	1060	300	125	670	600	690	410	28	125	250	210	8-φ18	100	220	180	8-φ18
