IHF-SJ fluorine plastic centrifugal pump

IHF-SJ fluorine plastic centrifugal pump

IHF-SJ fluorine plastic centrifugal pump

IHF-SJ fluorine plastic centrifugal pump
TECHNICAL DATA
Material: F46/HT200
DN: 20mm-300mm
PN: 16bar
Q: 3.6m³/h-1150m³/h
H: 5m-80m
T: -20°C-200°C
P: 0.55kw-200kw

Send E-mail:xiaoyun@jnhgbf.com

Join Us On Whatsapp:Click it to Join in

General Overview

General Overview

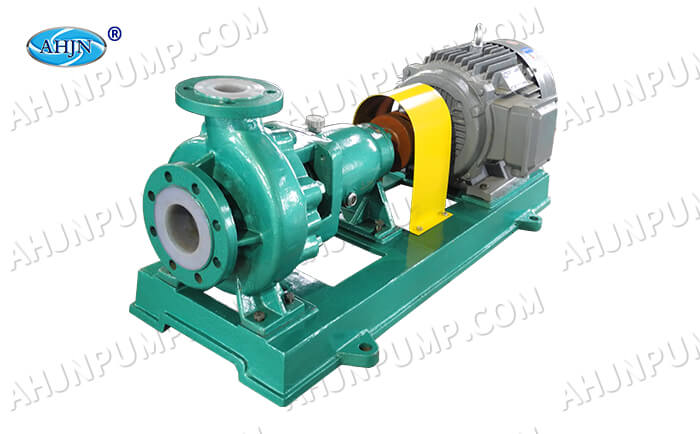

  • The IHF-SJ fluoro-plastic lined centrifugal pump, referred to as “IHF-SJ centrifugal pump” for short, is a single-stage, single-suction and cantilever centrifugal pump. The pump body is lined with metal shell lined with polyperfluoroethylene propylene (F46). The pump cover, impeller and shaft sleeve are formed by integral sintering of fluoroplastics with metal inserts. Can refer to the international standard ISO2858 standard research and development design.
  • Ihf-sj fluoro-plastic lined centrifugal pump has the advantages of high corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, stable operation, advanced and reasonable structure, strict and reliable sealing performance, convenient disassembly and maintenance, long service life and so on.
  • IHF – SJ fluorine plastic lined centrifugal pump widely in chemical, pharmaceutical, petroleum, metallurgy, dye, metallurgy, electric power, electroplating, pesticide, papermaking, food, textile and other industries pickling process, acid alkali, spray paint, electrolyte transport in non-ferrous metal smelting, ionic membrane project of chlorine water, wastewater treatment, electroplating, pesticide field.
  • Ihf-sj fluoroplastic-lined centrifugal pump is one of the most important anti-corrosion equipment at present, which transports sulfuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, royal water, strong alkali, strong oxidizer, organic solvent, reducing agent and other strong corrosive media at -85℃ ~ 200℃ for a long time.
  • Anhui Jiangnan Pump & Valve Group Co., LTD. Ihf-jns fluoroplastic centrifugal pump is all designed by computer and optimized for several decades of working condition structure. The company has strong technical force, rich production experience and perfect detection means, so as to ensure stable and reliable product quality. Has a number of fluoroplastic centrifugal pump patent technology.

Applicable fields Model parameters

N Model Rev=2900r/min   Medium density=1000kg/m³
Flow Pump head η Inlet Outlet Npsh Power Weight
(m³/h) (m) (%) (mm) (mm) (m) (kw) (kg)
1 IHF-SJ32-25-125 3.6 20 26 32 20 3 1.5 85
2 IHF-SJ 32-20-160 3.6 32 20 32 20 3 2.2 90
3 IHF-SJ40-25-125 6.3 20 35 φ40 φ25 3 1.5 78
4 IHF-SJ40-25-160 6.3 32 32 φ40 φ25 3 2.2 92
5 IHF-SJ40-25-200 6.3 50 25 φ40 φ25 3 4 147
6 IHF-SJ40-25-250 6.3 80 23 φ40 φ25 3 11 233
7 IHF-SJ50-32-125 12.5 20 51 φ50 φ32 3 2.2 90
8 IHF-SJ50-32-160 12.5 32 45 φ50 φ32 3 4 125
9 IHF-SJ50-32-200 12.5 50 39 φ50 φ32 3 7.5 166
10 IHF-SJ50-32-250 12.5 80 35 φ50 φ32 5 11 235
11 IHF-SJ50-32-315 12.5 110 20 φ50 φ32 5 30 300
12 IHF-SJ65-50-125 25 20 62 φ65 φ50 3.5 3 99
13 IHF-SJ65-50-160 25 32 57 φ65 φ50 3.5 5.5 146
14 IHF-SJ65-40-200 25 50 52 φ65 φ40 3.5 11 214
15 IHF-SJ65-40-250 25 80 49 φ65 φ40 3.5 18.5 297
16 IHF-SJ80-65-125 50 20 66 φ80 φ65 4 5.5 146
17 IHF-SJ80-65-160 50 32 64 φ80 φ65 4 11 214
18 IHF-SJ80-50-200 50 50 63 φ80 φ50 4 15 230
19 IHF-SJ80-50-250 50 80 57 φ80 φ50 4.5 30 393
20 IHF-SJ100-80-125 100 20 66 φ100 φ80 4.5 11 215
21 IHF-SJ100-80-160 100 32 71 φ100 φ80 5 15 254
22 IHF-SJ100-65-200 100 50 67 φ100 φ65 5 30 382
23 IHF-SJ100-65-250 100 80 65 φ100 φ65 5 45 540
24 IHF-SJ125-80-160 160 32 70 φ125 φ80 5 30 477
25 IHF-SJ125-100-200 200 50 65 φ125 φ100 6 55 630
N Model Rev=1450r/min   Medium density=1000kg/m³
Flow Pump head η Inlet Outlet Npsh Power Weight
(m³/h) (m) (%) (mm) (mm) (m) (kw) (kg)
1 IHF-SJ40-25-125 3.2 5 32 φ40 φ25 3 0.55 70
2 IHF-SJ40-25-160 3.2 8 28 φ40 φ25 3 0.55 75
3 IHF-SJ40-25-200 3.2 12.5 23 φ40 φ25 3 0.55 80
4 IHF-SJ40-25-250 3.2 20 20 φ40 φ25 2 1.5 85
5 IHF-SJ50-32-125 6.3 5 45 φ50 φ32 3 0.55 73
6 IHF-SJ50-32-160 6.3 8 40 φ50 φ32 3 0.55 91
7 IHF-SJ50-32-200 6.3 12.5 33 φ50 φ32 3 1.1 105
8 IHF-SJ50-32-250 6.3 20 30 φ50 φ32 5 1.5 128
9 IHF-SJ65-50-125 12.5 5 55 φ65 φ50 3.5 0.55 80
10 IHF-SJ65-50-160 12.5 8 51 φ65 φ50 3.5 1.1 92
11 IHF-SJ65-40-200 12.5 12.5 46 φ65 φ40 3.5 1.5 110
12 IHF-SJ65-40-250 12.5 20 43 φ65 φ40 3.5 3 140
13 IHF-SJ80-65-125 25 5 64 φ80 φ65 4 1.1 110
14 IHF-SJ80-65-160 25 8 62 φ80 φ65 4 1.5 110
15 IHF-SJ80-50-200 25 12.5 57 φ80 φ50 4 2.2 120
16 IHF-SJ80-50-250 25 20 53 φ80 φ50 4.5 4 140
17 IHF-SJ100-80-125 50 5 64 φ100 φ80 4.5 1.5 130
18 IHF-SJ100-80-160 50 8 68 φ100 φ80 5 2.2 140
19 IHF-SJ100-65-200 50 12.5 64 φ100 φ65 5 4 320
20 IHF-SJ100-65-250 50 20 62 φ100 φ65 5 7.5 350
21 IHF-SJ125-80-160 80 8 69 φ125 φ80 5 4 300
22 IHF-SJ125-100-200 100 12.5 64 φ125 φ100 6 7.5 375
23 IHF-SJ125-100-250 100 20 63 φ125 φ100 6 15 386
24 IHF-SJ125-100-315 100 32 60 φ125 φ100 3 18.5 480
25 IHF-SJ150-125-250 200 20 67 φ150 φ125 7 22 500
26 IHF-SJ150-125-315 200 32 65 φ150 φ125 7 45 660
27 IHF-SJ150-125-400 200 50 61 φ150 φ125 7 75 860
28 IHF-SJ200-150-250 400 20 69 φ200 φ150 7.5 45 680
29 IHF-SJ200-150-315 400 32 68 φ200 φ150 7.5 75 940
30 IHF-SJ200-150-400 400 50 63 φ200 φ150 7.5 110 1160
31 IHF-SJ300-250-400 1150 40 70 φ300 φ250 8 200 2300

Installation dimensions Size chart

N Model Outside and installing size Inlet flange size Exit flange size
L S P f W T H h D c a b n-φd k g i n-φt
1 IHF-SJ40-25-125 800 485 155 80 362 320 360 197 16 40 150 110 4-φ17.5 25 115 85 4-φ13.5
2 IHF-SJ40-25-160 800 485 155 80 362 320 360 197 16 40 150 110 4-φ17.5 25 115 85 4-φ13.5
3 IHF-SJ40-25-200 1025 650 160 80 450 385 440 260 24 40 150 110 4-φ17.5 25 115 85 4-φ13.5
4 IHF-SJ40-25-250 1224 740 208 100 490 440 485 260 24 40 150 110 4-φ17.5 25 115 85 4-φ13.5
5 IHF-SJ50-32-125 950 605 155 80 395 335 352 212 24 50 165 125 4-φ17.5 32 140 100 4-φ17.5
6 IHF-SJ50-32-160 950 605 155 80 395 335 392 232 24 50 165 125 4-φ17.5 32 140 100 4-φ17.5
7 IHF-SJ50-32-200 1075 650 160 80 450 385 440 260 24 50 165 125 4-φ17.5 32 140 100 4-φ17.5
8 IHF-SJ50-32-250 1224 740 208 100 490 440 485 260 24 50 165 125 4-φ17.5 32 140 100 4-φ17.5
9 IHF-SJ65-50-125 995 600 160 80 395 335 352 212 24 65 185 145 4-φ17.5 50 165 125 4-φ17.5
10 IHF-SJ65-50-160 1075 650 155 80 435 385 392 232 24 65 185 145 4-φ17.5 50 165 125 4-φ17.5
11 IHF-SJ65-40-200 1240 735 205 100 500 425 440 260 24 65 185 145 4-φ17.5 40 150 110 4-φ17.5
12 IHF-SJ65-40-250 1314 850 200 100 490 435 505 280 24 65 185 145 4-φ17.5 40 150 110 4-φ17.5
13 IHF-SJ80-65-125 1095 650 185 100 450 385 392 232 24 80 200 160 8-φ17.5 65 185 145 4-φ17.5
14 IHF-SJ80-65-160 1240 740 205 100 500 435 440 260 24 80 200 160 8-φ17.5 65 185 145 4-φ17.5
15 IHF-SJ80-50-200 1240 740 205 100 500 435 460 260 24 80 200 160 8-φ17.5 50 165 125 4-φ17.5
16 IHF-SJ80-50-250 1522 945 265 125 600 535 505 280 24 80 200 160 8-φ17.5 50 165 125 4-φ17.5
17 IHF-SJ100-80-125 1335 740 210 100 500 435 440 260 24 100 220 180 8-φ17.5 80 200 160 8-φ17.5
18 IHF-SJ100-80-160 1335 850 200 100 500 435 460 260 24 100 220 180 8-φ17.5 80 200 160 8-φ17.5
19 IHF-SJ100-65-200 1543 945 240 100 610 535 520 300 24 100 220 180 8-φ17.5 65 185 145 4-φ17.5
20 IHF-SJ100-65-250 1640 940 260 125 600 550 575 325 28 100 220 180 8-φ17.5 65 185 145 4-φ17.5
21 IHF-SJ125-80-160 1543 945 260 125 600 535 520 300 24 125 250 210 8-φ17.5 80 200 160 8-M16
22 IHF-SJ125-100-200 1714 1060 300 125 660 600 695 410 28 125 250 210 8-M18 100 220 180 8-M16
23 IHF-SJ125-100-250 1395 940 260 140 540 490 605 325 24 125 250 210 8-φ17.5 100 220 180 8-φ17.5
24 IHF-SJ125-100-315 1520 940 260 140 540 490 665 350 28 125 250 210 8-φ17.5 100 220 180 8-φ17.5
25 IHF-SJ150-125-250 1540 940 260 140 540 490 705 350 24 150 285 240 8-φ22 125 250 210 8-φ17.5
26 IHF-SJ150-125-315 1685 940 265 140 620 550 795 440 28 150 285 240 8-φ22 125 250 210 8-φ17.5
27 IHF-SJ150-125-400 1840 1060 300 140 670 600 875 475 28 150 285 240 8-φ22 125 250 210 8-φ17.5
28 IHF-SJ200-150-250 1674 940 285 160 620 550 440 815 25 200 340 295 12-φ23 150 285 240 8-φ22
29 IHF-SJ200-150-315 1890 1060 320 160 660 600 875 475 28 200 340 295 12-φ23 150 285 240 8-φ22
30 IHF-SJ200-150-400 2145 1240 340 180 790 720 945 495 36 200 340 295 12-φ23 150 285 240 8-φ22
31 IHF-SJ250-200-250 1945 1060 385 225 670 600 945 510 28 250 405 355 12-φ26 200 340 295 12-φ22
32 IHF-SJ300-250-315 2400 1240 463 300 790 720 1080 580 36 300 460 410 12-φ22 250 405 355 12-φ22
33 IHF-SJ300-250-400 2480 1240 463 300 790 720 1080 580 36 300 460 410 12-φ22 250 405 355 12-φ22
